Tuesday, March 17, 2020

Oracle APEX Global Notification

In the APEX application properties there is a property called Global Notification where you can enter some text that will be displayed on every page - the help text says:
You can use a global notification to communicate system status. If your page template contains a #GLOBAL_NOTIFICATION# substitution string then the text entered here displays on each page. For example, suppose you entered the message "Team picnic this Friday" in this attribute. Assuming your page templates support the global notification substitution string then this message would display on each page.
To create a global notification:
1. Include the #GLOBAL_NOTIFICATION# substitution string in your page template.
2. Navigate to the Edit Application page and enter a message in the Global Notifications attribute.
3. Click Apply Changes.
So let's see what we get if we put our message here:
It works, but it isn't exactly eye-catching is it? I was hoping the page template might have some mark-up around this to liven it up, but it doesn't. I could change the page template, but I'd rather not do that as I'd prefer to use standard Universal Theme page templates that can be refreshed after upgrades. Or I could use HTML in the global notification text:
<div class="u-info padding-md">
  <span class="fa fa-info-circle"></span>
  The system will be down for essential maintenance over the weekend.
</div>
That looks like this:
That is a lot better, I think. And obviously I can vary the colour and icon according to the type of message. But it still has some drawbacks for me:
  • I need to remember that HTML mark-up each time I want to set up a global notification, or remove one.
  • I need to amend the application to do it, rather than change some data outside the application.
So I quickly devised an alternative global notification system using a table and a report region with a bespoke report template. Here is the table:
The ID is just a surrogate key. TEXT contains the plain text of the message, e.g. "The system will be down for essential maintenance over the weekend." FROM_DATETIME and TO_DATETIME allow set-up of a message that will show for a defined period only (these are optional in case I want one shown indefinitely.) Finally, STATE is a string such as 'danger', 'info', 'success', 'warning' to determine the appropriate styling and icon to use. Here is the report SQL:

select id, text
, case state
       when 'info' then 'fa-info-circle'
       when 'danger' then 'fa-hand-stop-o'
       when 'warning' then 'fa-warning'
       when 'success' then 'fa-check-circle'
       end as iconclass
, 'u-' || state as divclass
from notices
where sysdate between nvl(from_datetime,sysdate) and nvl(to_datetime,sysdate)
and id not in (select column_value from apex_string.split(:APP_NOTICES_CLOSED))
order by case state when 'danger' then 1 when 'warning' then 2 end, state

The report SQL derives the icon type and the class to style the message based on the state. An enhancement would be to put these in a table of notification state attributes and look them up. The report region is defined on page 0 so that notifications appear on all pages, in the Before Content Body position. The region template is Blank with Attributes. I have created a bespoke report (row) template - I could have used the Universal Theme's "Alert" report template, but it isn't quite what I want. The template HTML is:

<div class="#DIVCLASS# padding-md">
  <span class="fa #ICONCLASS#"></span>
  #TEXT#
  <a href="#" id="closeNotice-#ID#" class="closeNotice" title="Hide this notice">
    <span class="fa fa-times-circle-o u-pullRight #DIVCLASS#"></span>
  </a>
</div>

OK, let's set up a few notices and see what we get...
Nice(ish). But the users might get fed up with all those messages clogging up every page. What they need is a way to dismiss them. We've already done some of the work - note the X icon at the right-hand end of each message, and this line in the report SQL:
and id not in (select column_value from apex_string.split(:APP_NOTICES_CLOSED))
We need to create an application item called APP_NOTICES_CLOSED. This will be a list of the notice IDs that the user has dismissed. Then we need the logic to maintain this item - a dynamic action defined on page 0 as follows:
  • Event: Click on Javascript Selector ".closeNotice"
  • Action: Execute Javascript code:
  • $s ('P0_CLOSE_NOTICE_ID',
        $(this.triggeringElement).attr('id').substr(12));
    (So we also need a hidden page 0 item called P0_CLOSE_NOTICE_ID)
  • Action: Execute PL/SQL code:
  • declare
       l_count integer;
       l_tab apex_t_varchar2;
    begin
       select count(*)
       into l_count
       from apex_string.split(:APP_NOTICES_CLOSED)
       where column_value = :P0_CLOSE_NOTICE_ID;

       if l_count = 0 then
          l_tab := apex_string.split(:APP_NOTICES_CLOSED);
          l_tab.extend;
          l_tab(l_tab.count) := :P0_CLOSE_NOTICE_ID;
          :APP_NOTICES_CLOSED := apex_string.join(l_tab);
       end if;
    end;
  • Action: Hide - Javascript expression:
    $(this.triggeringElement).closest('div');
Now, when the user clicks on the X on a notification message, we hide it and add its ID to a list of notifications that we will no longer show in this session. Next time the user logs on, all current messages will be displayed again. An obvious enhancement would be a way to dismiss messages forever once acknowledged.

So there it is - a fairly quick and dirty global notification mechanism with scope for various enhancements.

Friday, August 18, 2017

APEX Interactive Grids - what I've learned so far

My latest project has been building new pages on APEX 5.1, and quite a few of them have involved the new Interactive Grids (IGs).  I've learned I few things about them in the process, which I thought I'd record here both for my own benefit and in case it helps others.

They are addictive

I've seen a video of a David Peake presentation about IGs where he warns that developers will be tempted to overuse them.  It's true: once you've built a couple of IGs you are inclined to want to use them on every page instead of showing a report with an edit link.  They are very slick and modern in appearance.  But it's important to consider the users and whether the IG is the best interface for what they need to do.

They are very new

Like anything very new, they having teething troubles.  I've raised a number of issues on the Oracle APEX forum where things don't seem to work quite as they I would expect, or found issues that others have already raised.  These include:

A common thread here is that these questions often don't get answered.  I think this is because there is only one person who might know the answer, and he is no doubt a very busy man!

Being new they are also somewhat scant on documentation.

They are complex to configure

Out of the box you can configure a few properties of an IG via the APEX Builder such as:
  • Grid is editable or not
  • Insert/Update/Delete operations allowed or not
  • Toolbar is shown or not
  • Save and Reset buttons are shown or not
  • ... and several other things
However, they are nowhere near as declaratively configurable as Interactive Reports, which allows you to switch off individual features of the Toolbar its Actions list via property settings.  If you want to remove unwanted actions from an IG's toolbar (other than Save and Reset)  then you have to write some moderately complex Javascript that requires a knowledge of the IG's underlying architecture.  This is currently undocumented, but luckily John Snyders (who built them) has written a great series of blog posts about how to hack IGs that is indispensable if you need to make such changes.  I also found this blog post by SLino invaluable when wanting to drastically simplify an IGs config, and Explorer's review of IGs is a great way to get an overview of what is involved in developing with them.

I think that this complexity of configuration rather goes against the APEX principle of "low code", and very much hope that a lot more declarative control will be added in future versions of APEX.  But I appreciate that's a pretty tall order and Rome wasn't built in a day!

They can be slow to load

It seems that a lot of work goes on in Javascript when you load a page that has one or more IGs. On a modern browser like Chrome this isn't very noticeable and the page will be ready to use within a second or so even with a few IGs.  But IE11 (which is still the official browser for my users :-( ) takes about 5 seconds per IG, so a page with master-detail-detail IGs might take 15 seconds to initialise after page load.  I have heard that there will be some performance improvements in APEX 5.1.3, so look forward to seeing that.

Conclusions (TL;DR)

Interactive Grids are a great and powerful addition to the APEX toolkit, a vast improvement over the old tabular forms.  They should be used where they really add value, and not overused.  Being very new, they have a few issues, are not well-documented (compared to the rest of APEX), and require some quite advanced coding (and a lot of Googling) to configure if the default behaviour is not what you need.  I'm sure that by the time APEX 6.0 comes out they will be even better, and much easier to configure!

Thursday, June 29, 2017

APEX applications that run without Javascript just got harder


Long ago in 2009 I wrote a blog post called Accessible APEX and in it there is a link to an application on apex.oracle.com that would work even when Javascript was disabled in the browser.  However, since APEX 5.1 changes the way page items are mapped, that old application no longer works when Javascript is disabled.

Oh dear , never mind, who cares?  Why would anyone in 2017 want to disabled Javascript in their browser?  Why should we care if they do?  And the APEX 4.2 Installation Guide states that:
To run or develop Oracle Application Express applications, Web browsers must have JavaScript enabled.
(I can't find the equivalent statement for APEX 5.1 but it clearly still stands.)

Well, we have to build our applications for our customers, and believe it or not some customers even in 2017 insist that the application must work when Javascript is disabled.  For example, the UK's Government Digital Services (GDS), which controls any work built for UK government public-facing websites:
Make any new web page or feature usable from the start with only HTML - no images, CSS or JavaScript, just HTML.
...
Of course, some users turn off features in their browsers deliberately - you should respect their decision and make sure they can still use your service.
(In fact, GDS's rules preclude building in APEX for other reasons, such as it not being Open Source, but there is currently one GDS service running on APEX 4.2.5 and it works when Javascript is disabled!)

Prior to APEX 5.1 this wasn't too difficult to achieve: mainly it was a case of using a basic HTML submit button on forms rather than the default APEX buttons that use Javascript.  There was more to it than that to achieve a useful application, but that was the main difference.  When the page was submitted all the page items would still be passed to wwv_flow.accept via the p_vnn parameters.  But in APEX 5.1 these parameters are gone and all the page items and values are passed as a single JSON string - which is put together by APEX using Javascript.  If you disable Javascript, the JSON string is not generated and the page item values do not get updated in session state.

This is almost the final nail in the coffin of Javascript-disabled APEX applications - but not quite: you can still have Javascript-disabled APEX applications as long as you don't use page items!  The g_f01-g_f50 arrays used by legacy tabular forms (for example) still work, so you can use the apex_item package or your own equivalent to render HTML controls named "f01"-"f50" that get submitted via wwv_flow.accept whether Javascript is enabled or disabled.  To prove it I have created a new APEX 5.1 version of my 2009 application that works when Javascript is disabled.

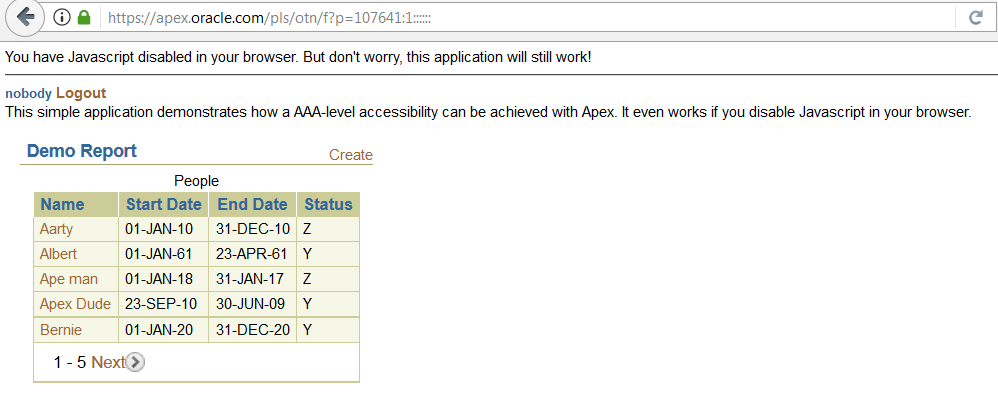

It's not pretty, but it works...


If building a brand new application that had to run with Javascript disabled, APEX is probably not the ideal choice.  But at least it can be done if you really have to, and there is some kind of (difficult) upgrade path for pre-APEX 5.1 applications that are required to run with Javascript disabled.



Friday, July 22, 2016

APEX IDE for Shakespeare Programming Language (SPL)

Recently I came across an esoteric programming language called The Shakespeare Programming Language (SPL) and become rather fascinated by it.  It's big, and it's clever, but it's not terribly useful or practical.  But this year is the 400th anniversary of Shakespeare's death, which adds some relevance I suppose.

Here is an example of an SPL program taken from the SPL docs.  All it does is receive a string as input and output the same string reversed.


Outputting Input Reversedly.

Othello, a stacky man.
Lady Macbeth, who pushes him around till he pops.


                    Act I: The one and only.

                    Scene I: In the beginning, there was nothing.

[Enter Othello and Lady Macbeth]

Othello:
 You are nothing!

                    Scene II: Pushing to the very end.

Lady Macbeth:
 Open your mind! Remember yourself.

Othello:
 You are as hard as the sum of yourself and a stone wall. Am I as horrid as a flirt-gill?

Lady Macbeth:
 If not, let us return to scene II. Recall your imminent death!

Othello:
 You are as small as the difference between yourself and a hair!

                    Scene III: Once you pop, you can't stop!

Lady Macbeth:
 Recall your unhappy childhood. Speak your mind!

Othello:
 You are as vile as the sum of yourself and a toad! Are you better than nothing?

Lady Macbeth:
 If so, let us return to scene III.

                    Scene IV: The end.

[Exeunt]

I picked this one to show here because it is much shorter than the Hello World example!

I'm sure you'll agree with me that this is a language worth learning.  I decided to try it out.  There is a compiler from SPL to C available on Github, but that didn't sound much fun to me as I'm not a C programmer these days and have no particular wish to revisit it.  So I thought, why not write my own SPL to PL/SQL "compiler"?  And having done that it seemed a logically step further to build a sort of IDE for building and running SPL programs - using Oracle APEX of course, because APEX is the hammer for every nail in my life,

I am therefore proud to present my Shakespeare Programming Language IDE (I'm toying with the name "SPL Developer"):

Using this I can enter the SPL code above, click compile, and get the following generated PL/SQL code:


-- Outputting Input Reversedly.
declare
-- Othello, a stacky man.
othello t_character := t_character();
-- Lady Macbeth, who pushes him around till he pops.
lady_macbeth t_character := t_character();
-- Act I: The one and only.
begin
spl.initialise(v('P4_INPUT'));
<<acti>> null;
-- Scene I: In the beginning, there was nothing.
<<acti_scenei>> null;
-- [Enter Othello and Lady Macbeth].
-- Othello: You are nothing.
lady_macbeth.becomes( (0 ));
-- Scene II: Pushing to the very end.
<<acti_sceneii>> null;
-- Lady Macbeth: Open your mind.
othello.open_mind();
-- Remember yourself.
othello.remember();
-- Othello: You are as hard as the sum of yourself and a stone wall.
lady_macbeth.becomes( (spl.sum (lady_macbeth.val , 2 ) ));
-- Am I as horrid as a flirt-gill.
if (othello.val )= (-1 ) then
-- Lady Macbeth: If not, let us return to scene II.
null;
else
spl.log_op;
goto acti_sceneii;
end if;
-- Recall your imminent death.
othello.recall();
-- Othello: You are as small as the difference between yourself and a hair.
lady_macbeth.becomes( (spl.difference (lady_macbeth.val , 1 ) ));
-- Scene III: Once you pop, you can't stop.
<<acti_sceneiii>> null;
-- Lady Macbeth: Recall your unhappy childhood.
othello.recall();
-- Speak your mind.
othello.speak_mind();
-- Othello: You are as vile as the sum of yourself and a toad.
lady_macbeth.becomes( (spl.sum (lady_macbeth.val , -1 ) ));
-- Are you better than nothing.
if (lady_macbeth.val )> (0 ) then
-- Lady Macbeth: If so, let us return to scene III.
spl.log_op;
goto acti_sceneiii;
end if;
-- Scene IV: The end.
<<acti_sceneiv>> null;
-- [Exeunt].
end;


I've retained the original SPL as comments, followed by the PL/SQL that implements it.

I can now run it:
As you can see, I ran it with "Blog post" as input, and it returned the output "tsop golB", as expected.

I know what you're thinking: "can I have a go?"  And the answer is yes, you can! You can view and run any of the programs there, and can even add and compile one of your own if you "register" (set up a username and password).  Here it is.

I just hope Oracle can handle the traffic...

[Exeunt]

Wednesday, July 20, 2016

Conditional column linking in APEX

Sometimes there is a requirement to have a column in an APEX report that acts as a link to another page for some rows but not for others like this:
Here, only when a program's status is 'VALID' can we link to another page by clicking on the program name.

Until now I only knew a rather bad way of doing this, which would be to write code in the report query like:

select case when program_status='VALID'
       then '<a href="f?p=MYAPP:123:&SESSION.::&DEBUG.:123:P123_PROGRAM_NAME:'
            || program_name || '">' || program_name || '</a>'
          else program_name
          end as program_name,

Not only is it ugly and hard to write, it has some other issues too:

  1. I need to change the column's "Display As" from the default to "Standard Report Column" to prevent the link HTML being escaped and displayed literally.  And this may be frowned upon as a potential security risk.
  2. If using session state protection (SSP) then I need to add a checksum to the URL by calling apex_utils.prepare_url.  Now I have a function call in the SELECT clause, which may cause performance issues.
I now have a different solution, based partly on Tyler Muth's Conditional Column Formatting post.

Here is the query for my report above:


select program_name
     , program_status
     , case when program_status != 'VALID' then 'nolink' end as class_name
  from spl_programs

The third column CLASS_NAME will be set to 'nolink' on all rows that do not have the 'VALID' status.  This column is then set to not show in the report.

In the column attributes for the PROGRAM_NAME column, I define the column link in the usual manner, except that I add class="#CLASS_NAME#" in the Link Attributes:


I can add some CSS to make "nolink" links look like plain text, and also not have the cursor change when hovering over the link:

a.nolink {
    color: #000;
    cursor: default;
}

But the user could still click on the link.  To prevent it redirecting to the other page I can change the onclick event for all "nolink" links with some "Execute when page loads" Javascript:

$('a.nolink').attr("onclick","return false;");

Now if the user clicks on the link, nothing happens.  But in theory they could disable Javascript and reinstate the default link action. Or they could view the page source or use Inspect Element to see the link's URL, and copy/paste it into the browser.  In some cases that may not matter, but if it does matter then it should be prevented, for example by adding an appropriate Authorization Scheme to the target page.

One possible issue (a colleague just reminded me) is accessibility - although it no longer looks like a link, and does nothing when clicked, to a screen reader program it is still a link, and the screen reader user may be mystified as to why it doesn't work. Perhaps instead of "return false;" it should have"alert('You cannot open this program as it is invalid');".  Or there may be a better solution?

Friday, May 27, 2016

At last APEX_PAGE.GET_URL!

I have just discovered (thanks to a tweet by @jeffreykemp) that in APEX 5.0 there is now a function called APEX_PAGE.GET_URL:


About time!  I've been using this home-made version for years:


So if I want to create a URL that redirects back to the same page with a request I can just write:

    return my_apex_utils.fp (p_request=>'MYREQUEST');

One difference is that the one I use has a parameter to decide whether or not to "prepare" the URL (add the checksum etc.)  This has been needed sometimes to ensure a URL is not prepared by the function because APEX goes ahead and prepares it again resulting in an invalid URL with two checksums.  If I recall correctly this can happen when the URL is used in a branch. Perhaps this doesn't happen in APEX 5.0 though?

Monday, May 16, 2016

APEX plugin: make tabular report responsive

I often have to build APEX applications that are responsive to the size of the screen they are running on - from desktops down to mobile phones.  While this can be achieved quite easily using a modern responsive theme, reports are often a problem.  For example, this report looks fine on a desktop:


... but gets truncated on a mobile:


Here I'm using the APEX 5.0 Universal Theme, which at least adds a horizontal scrollbar to the report, but that isn't always ideal.

I came across a solution that I liked here which uses CSS alone to reformat the report vertically on small screens - like this:


Try my demo page at http://tiny.cc/apexrr (e.g. try it on your phone).

I won't go into the details of how it works as the blog post I referenced above does that already.  However, a big attraction for me was that it does not require any Javascript, because I often have to build public website applications that need to work with Javascript disabled (yes, I know!)

Having used this technique a couple of times I decided it would be worth wrapping up into a plug-in.  After some deliberation I decided to make it a dynamic action plug-in, so that it can be added to apply the styling to a specified report region without having to manually add any CSS to the page.  However, it is an unusual dynamic action because it doesn't actually do anything dynamic - the Javscript function it performs is a dummy that does nothing.  The useful work is done by CSS that the plug-in adds to the page while rendering.

There are 3 settings for this plug-in - 2 at application level and 1 at component level:

  • Application setting 1: CSS class of the report's container.  This is normally a div that surrounds the whole report, which will have its width set to 100% on small screens by the plug-in.
  • Application setting 2: CSS class of report data table.  This is the table that contains just the report data (not the pagination etc.), which will be transformed by the plug-in.
  • Component setting 1: Max screen width (px) affected   This governs when the transformation kicks in - default is 760 (pixels).
My thinking (currently) is that the classes will be the same from region to region within the same applicaiton, as they come from the report template, whereas the screen width at which the report needs to be transformed could vary from one region to another.

When installing the plug-in you need to set the 2 application settings for the CSS classes appropriately for the report templates you are using.

To use the plug-in you need to create a dynamic action for each report region to which it needs to be applied as follows:
  • Event: Page load
  • Condition: none
  • Action: this plug-in
  • Max screen width (px) affected: as you wish (or leave as default)
  • Selection type: Region
  • Region: the region to apply it to
There are some limitations and caveats to be aware of:
  1. It only works on classic reports, not interactive reports.  I'm not really sure it would make sense on IRs, and their HTML is different to that of classic reports.
  2. Column header sorting functionality is lost when the report is transformed for the small screen,
  3. The report headings must be enclosed in a element - you may need to edit your report template and add this (in the before/after column heading sections).
  4. The data table must have a class (to use in the component settings) - again, the report template can be edited if necessary.
If anyone cares to try it out and can give any feedback on how this could be improved I'd be glad to receive it - it will be available on apex-plugin.com very soon.
